TLDR: Based on our fabrication trials, we redesigned the parallel and series interconnects that join the individual cells to form our battery. The fabrication required for our new design is covered by what we proved in the trials. We ordered production material.
To make our cells function as a battery we have to connect them together in a specific pattern. We take two cells, and connect the positive terminals together and connect the negative terminals together. We're referring to the things that make these (parallel) connections as the "parallel" interconnects. Those join two cells in parallel for kind of an uber-cell. We then connect 8 of those uber-cells together in series, positive to negative and so on. We're referring to the things that make these (series) connections as the "series" interconnects.
Note: This is an updated version of this post. Based on the fabrication trials we revised the design to make it more producible.
The series interconnects carry the full current that flows into and out of the battery. The parallel interconnects only carry half, so less copper is needed.
Each parallel interconnect is composed of 1 mm thick, 38.1 mm wide copper bus bar (not stacked). The interconnect will have a strain-relief arch of radius ~9.5 mm to minimize the force on cell terminals due to growth and movement. In the final formed configuration they have a center-to-center distance of ~71 mm and a total length of ~106 mm.
In the ordered (flat) condition they have a center-to-center distance of ~80 mm and a total length of ~112 mm. The two holes are 6mm in diameter.

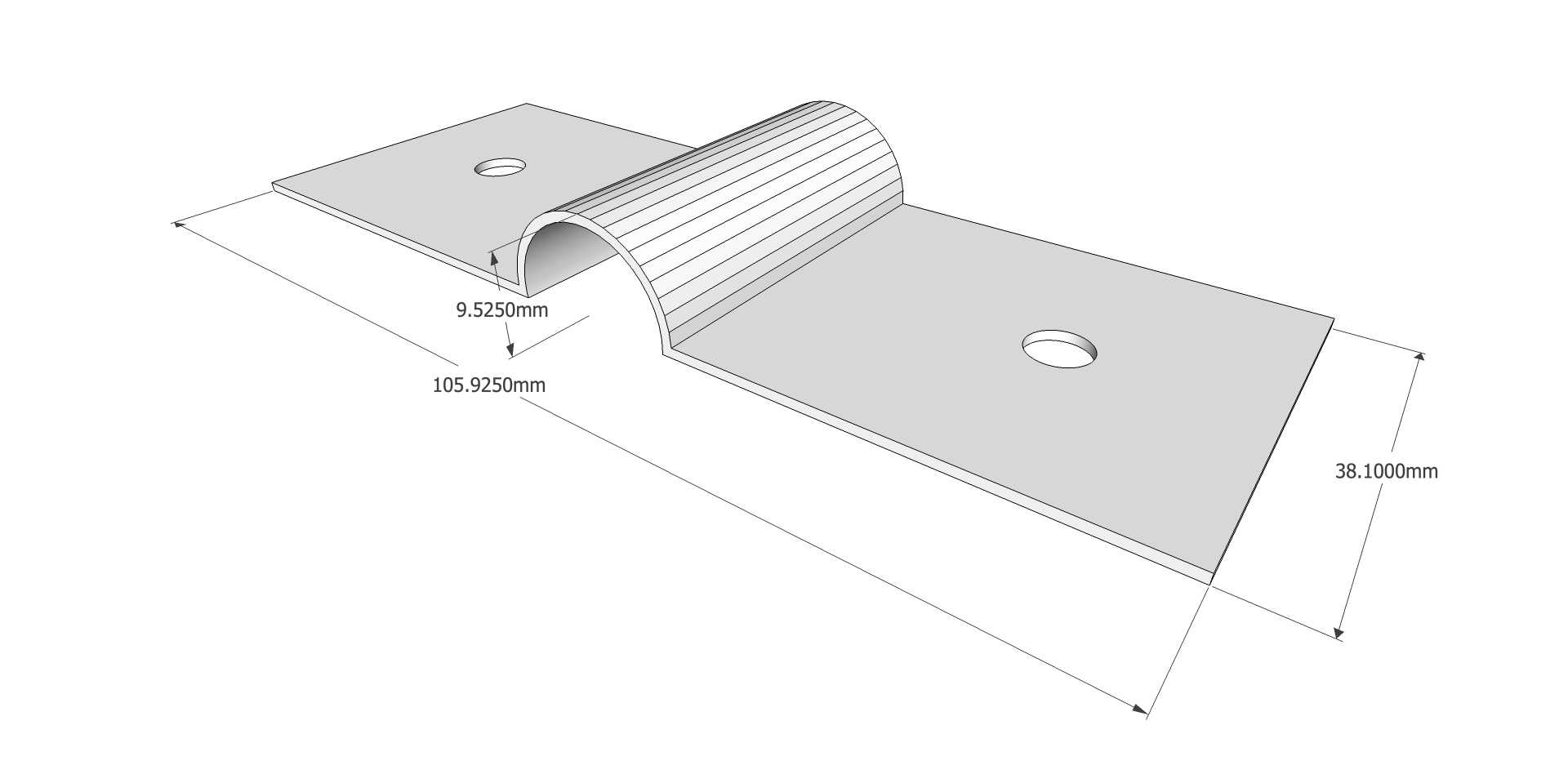

The parallel interconnects look like this except the bend is more triangular.
One series interconnect, the "athwart series interconnect", shares identical dimensions as the parallel bus bars except the width is 57.15 mm. These bars are stacked 2 high.
Each other series interconnect is composed of 1 mm thick, ~35 mm wide copper bus bars stacked five high. These will be straight bars to simplify fabrication and due to the limited growth likely in the cells along that dimension (length). The holes on these bars will be slightly slotted (~1 mm) to allow sliding to lessen the force on cell terminals due to growth and movement. These bars have a center-to-center distance of ~84 mm and a total length of ~122 mm. The two holes (slots) are 6 mm x 7 mm in "diameter".
Design Goals
Our design goals were to:
- Avoid oversizing or slotting interconnects directly against the terminal flats given the limited contact area.
- Avoid imparting large forces to the cell terminals due to cell growth or shrinking, or thermal growth of the interconnects.
- Maximize ampacity to keep the interconnects as cool as possible given they connect directly to the battery cells.

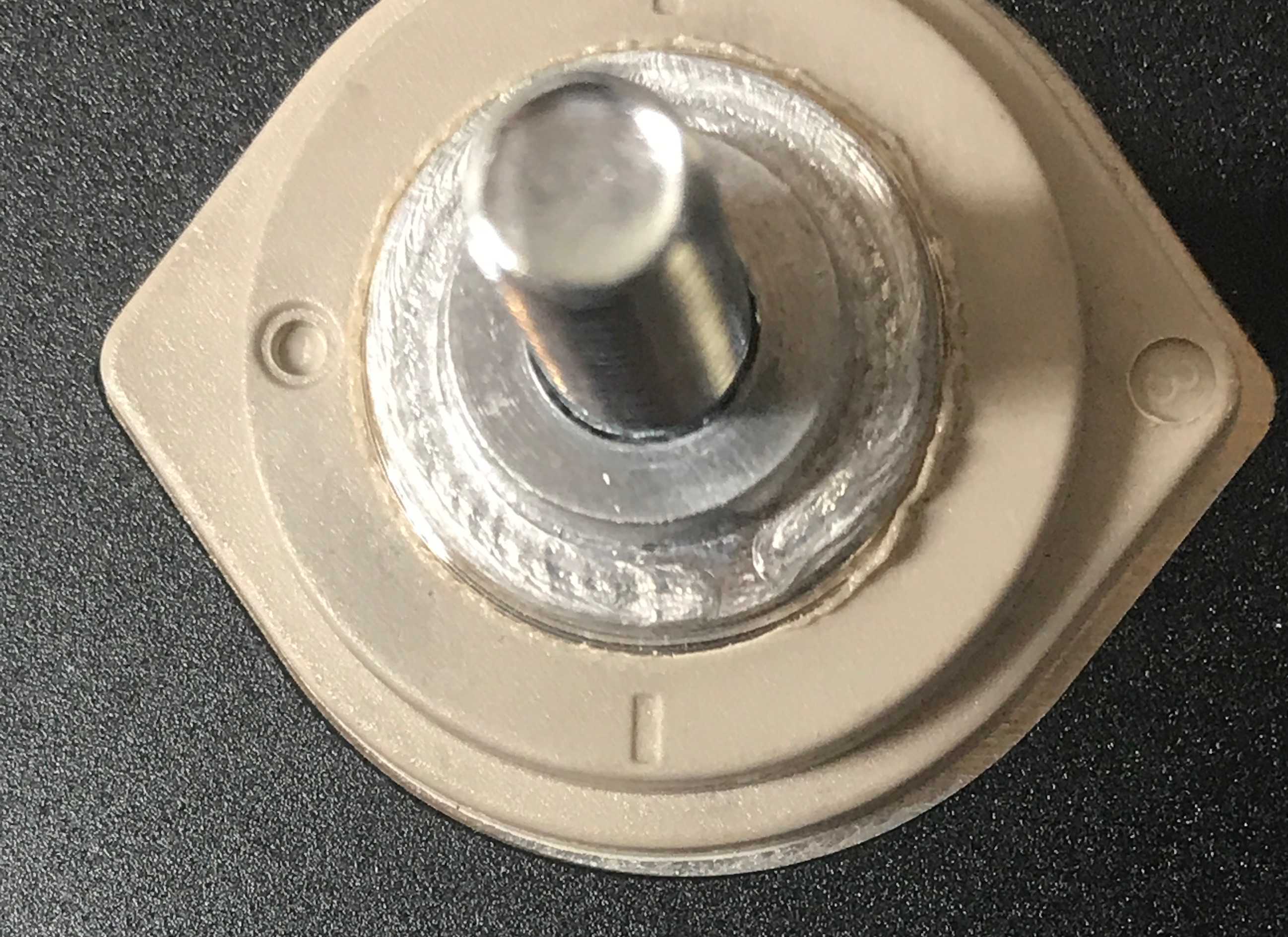

That small flat area is why we don't want to oversize or slot our bus bar holes.
These, sometimes competing, goals led us to look at procuring laser cut interconnects from send cut sent. By using the thinnest copper they offer (~1 mm), we could easily shape the copper to make it "flexible" to terminal movement while keeping the holes tightly toleranced to the terminal radii. This accomplishes the first two design goals. By stacking these "bars" and/or choosing their width appropriately, we accomplish the third goal.
Design Approach
Note: This google spreadsheet contains all the calcs and data referred to in this section.
Ampacity, Stack Height, and Width
To allow evaluating tradeoffs between custom bus bar widths and number of layers, we used data to find a good regression that tracked their empirical data. This is probably overkill, but it allows you to easily play with parameters and iterate quickly once you have it. After trial and error we settled on a regression that tracked with low error in the ranges of width and thickness we were interested in. The regression output drives a calculator on the "Ampacity Calculator" tab in the aforementioned spreadsheet. That tab will also allow you to enter a "design current" higher or lower than the calculated ampacity to estimate the bar temperature rise above ambient for your operating current. This is not regression based (it uses a simple physics approximation) but tracks copper-dot-org's data pretty well and conservatively. All of this allowed us to evaluate bar widths and thicknesses that minimized temperature vice just meeting an ampacity limit.
This led us to:
- parallel interconnects that are 1.5 inches wide (not stacked).
- an athwart series interconnect that is 2.25 inches wide and stacked two high (~2 mm).
- series interconnects that are 1.375 inch wide and stacked 5 high (~5 mm).
These will run ~11.5C over ambient at 0.5C charge or discharge rates.
By the way, copper.org is a phenomenal resource if you need to do anything with copper...highly recommend.
Terminal Forces and Length
Once we had the cells and battery structure all kapton'd, assembled, and compressed, we took measurements between all terminals that would feature an interconnect. The measurements in the "Cell Terminal Measurement Data" tab of the above spread sheet.

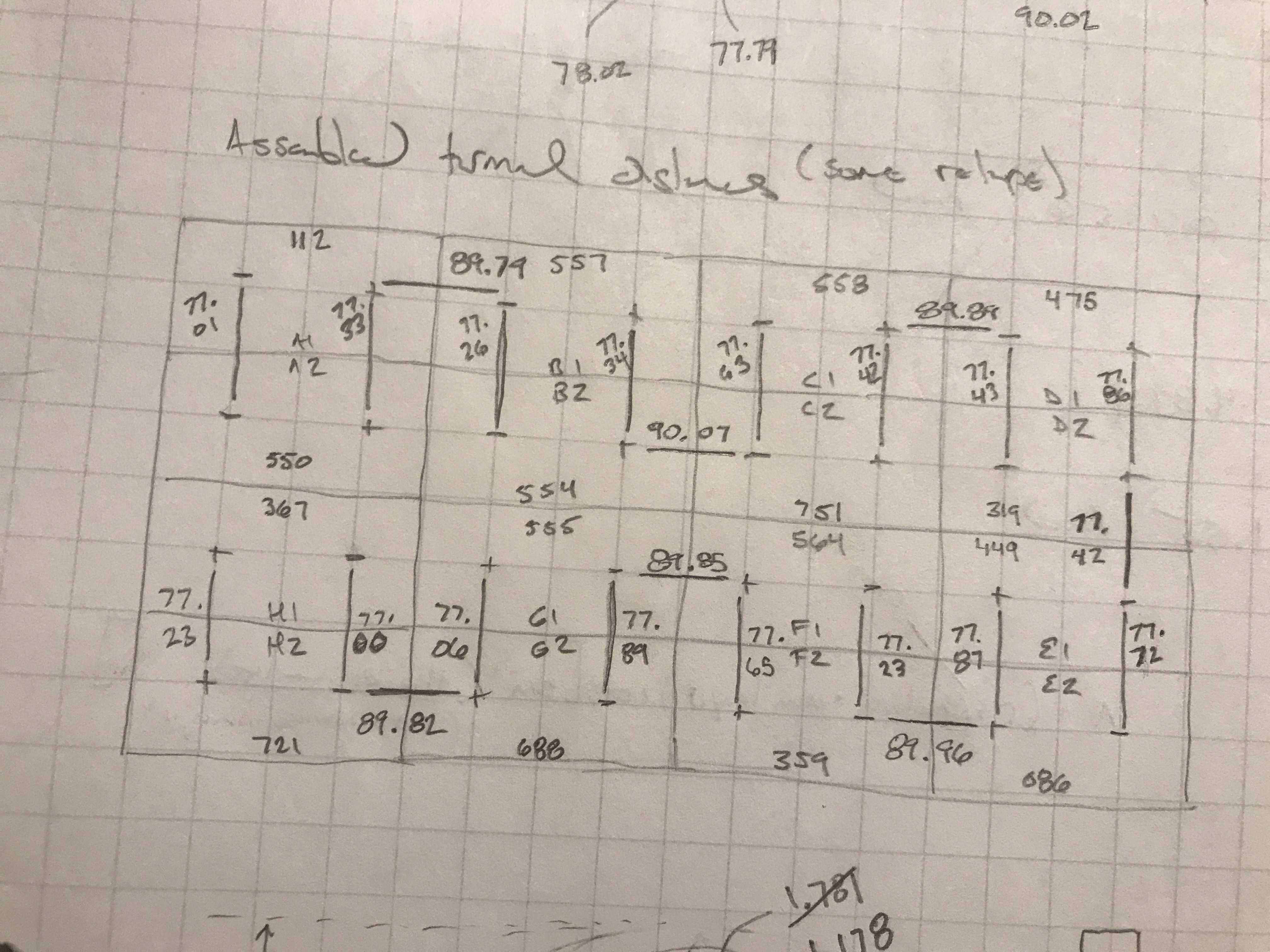

Before spreadsheets we had to do everything with pencil and engineering graph paper.
Because we want to maximize terminal flat contact, we are looking at putting 6 mm holes over 6 mm terminals for the parallel interconnects (on bottom). This means no sliding to relieve force imparted to the terminals. From research and experience of others, we know that we will likely have to accommodate up to 0.2 mm of terminal displacement. You can calculate the associated forces and stress, and you'll find that copper will be yielding and there will be thousands of lbf on the terminal (or moving them which is worse). The "Battery Post Force Calculator" tab will give you forces for a given displacement.

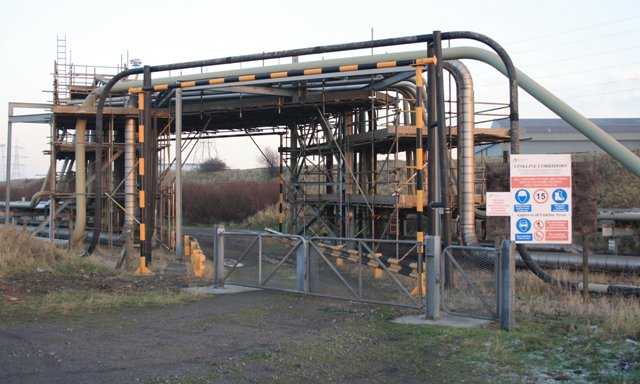

A feature like a pipe expansion loops will significantly reduce stress at the fixed ends. © Mick Garret CC BY-SA 2.0
So we didn't want to dimension straight bus bars using terminal measurements we took above. We wanted to make them longer and then bend a little "arch" into them to make them more compliant to axial movement. The larger the radius of the "arch" the lower the force imparted on the terminals for a given displacement. However, we have a few constraints. We need the series bars to lay on the flat, non-arched, parts of the parallel bars. We also want the tops of the arches to lay below the top of the battery side plates so the arches don't interfere with putting a lid on the battery down the road.
To this end, the "Interconnect Length Dimension Calculator" tab in the spreadsheet above figures this all out for us. We put in some parameters like the bar width and stack height we already figured out, and our desired radius, and it spits out the final length dimensions.
This all led us to:
- Flat parallel bars that are 79.5 mm center-to-center that will be ~71 mm center-to-center and ~106 mm with a 3/8 inch radius arch formed.
- Two athwart series bars with the same dimensions.
The 3/8 radius meets our constraints, and reduces the terminal forces by a factor of ~40. Most importantly, it is the radius of a 3/4 wooden dowel available from any hardware store. That is what we'll use to help bend/form the arches down the road.
Final Design
With the fabrication trial out of the way, we are confident enough in the design of the interconnects to place the full order from sendcutsend.com:
Quantity 20: 38.1 mm x 114.5 mm, 79.5 mm on-center holes, 0.04 inch copper stock. These are for the 16 parallel connections with an extra 4 as production backups.
Quantity 6: 57.15 mm x 114.5 mm, 79.5 mm on-center 6 mm holes, 0.04 inch copper stock. These are for the single athwart series connection between cell group 4 and 5 with an extra 4 as production backups.
Quantity 35: 35 mm x 122.1 mm, 84 mm on-center 6 x 7 mm holes (slots), 0.04 inch copper stock. These are for the series connections with an extra 5 (1 connection) as production backups.
Note: These dimensions may deviate from the spreadsheet by a tenth of a mm here and there to make everything line up and eliminate odd decimals.
Alternatives Considered
We looked at products available on ali-express and domestic suppliers. The CALB-style interconnects are hard to find at reasonable prices and at the needed dimensions for the EVE cells in our arrangement. We considered the braided products out there but found them expensive, lacking in the right ampacity, or having flatness problems that would not guarantee good connections. For these reasons we opted to design our own.
For our own designs we considered making our own braided interconnects using braid stock available from McMaster-Carr and copper pipe. However, we would have needed to procure a press to do it properly, and I didn't want to buy one for such a limited and specific application.
Also, as previously noted, we iterated the chosen design once, based on fabrication trials. We also considered widening the series interconnects by making them asymmetric about the long axis (holes to one side) to reduce the stack from 5 to 3. However, we felt that would make the sense wire routing slightly more difficult.
